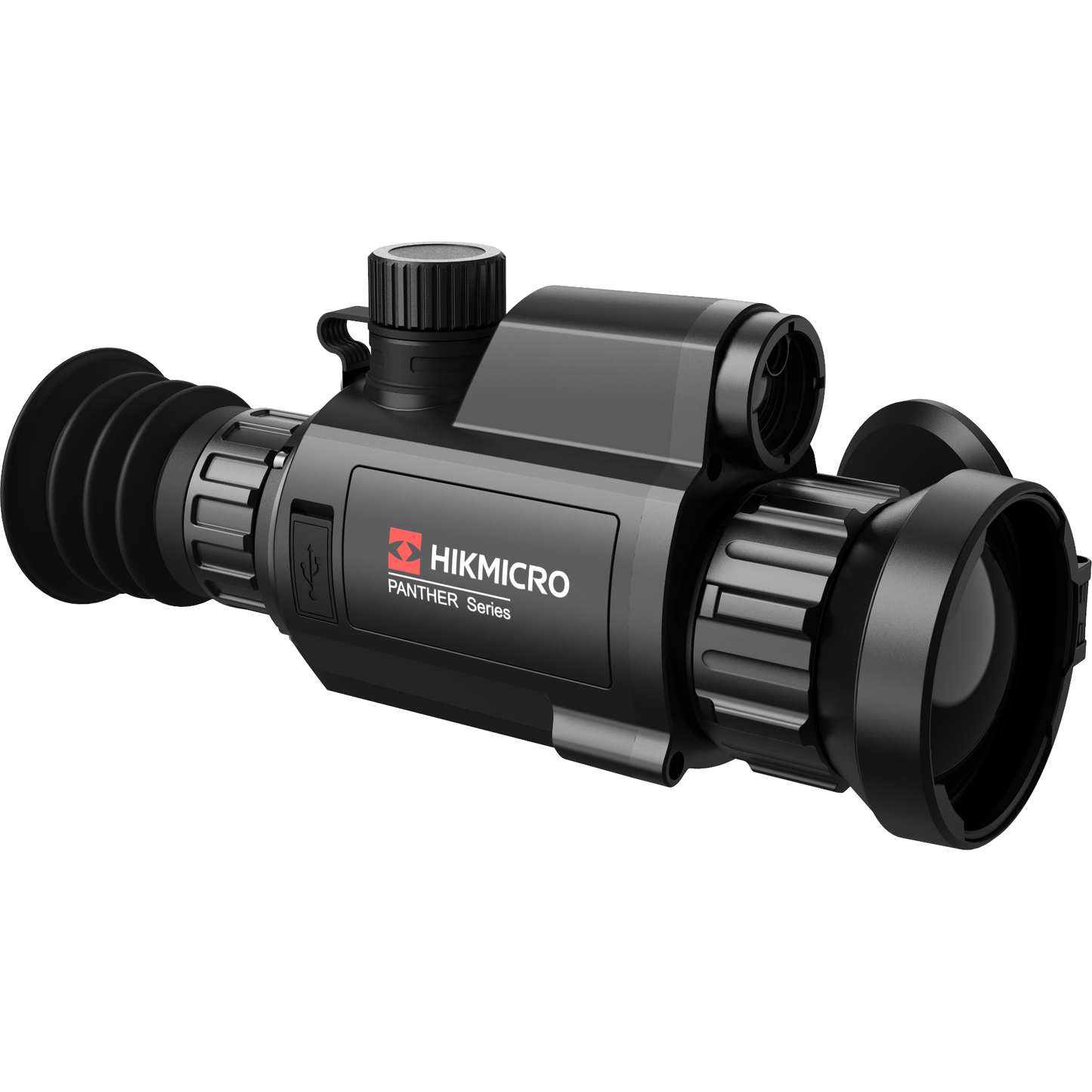

HIKMICRO Panther 50mm LRF Smart Thermal Weapon Scope
HIKMICRO Panther 50mm LRF Smart Thermal Weapon Scope
SKU:HM-PH50L
The Panther is the first dedicated Rifle Scope to combine HIKMICRO’s high quality Thermal image performance with a compact Laser Rangefinder, which allows you to display the distance of your target in the viewfinder of the Scope. A host of innovative new features alongside a removable 18650 battery and universal Picatinny attachment make the Panther an attractive package.
Developed to be ergonomic and easy to use in the dark, the Panther has a robust focus ring fitted behind the objective lens. All of the other major controls are completed by the innovative jog dial. Rotating the jog dial adjusts the magnification, pressing the jog dial switches between the 4 colour palettes, pressing and holding will load the menu, which can then be navigated and controlled from the dial. There are only 2 other buttons on the Panther, one controls the Laser Rangefinder, the other is used to power the unit on or put it into standby mode.
At the heart of the Panther is HIKMICRO’s 384x288px, 12µm thermal sensor with a sub 35mk NETD. This highly accurate thermal sensor is capable of detecting small temperature differences, building a highly detailed image, even in the harshest of conditions.
The thermal sensor is paired with HIKMICRO’s high performance 50mm focal length lens system that delivers a 4.3x optical magnification with up to 8x digital magnification, which expands the detail in your image. The thermal lens system also has a high specification F1.0 aperture which means there are no restrictions in the lens system and all of the available thermal signal can reach the sensor. This combines with the highly accurate thermal sensor to deliver excellent thermal performance in all conditions.
The large 1024x768px OLED display gives you an excellent view of your target and your surroundings. The display can be customised to include the option of Picture-In-Picture and the Laser Rangefinder readings can be altered to suit your style of shooting. You can also select from 4 thermal colour palettes White Hot, Black Hot, Fusion and Red Hot.
The Panther uses HIKMICRO’s latest software which includes an updated zeroing system with a one shot zero, making it quick and easy to get the Scope setup with your Rifle. You also have the ability to record pictures and video of your shooting trips direct to the Scope or you can use the App to stream, record and control your Panther from your mobile phone.
The robust chassis joins to the supplied Picatinny rail making it easy to attach to your Rifle and achieve the perfect eye relief. With a recoil rating of 750 g/ms the Panther will perform on large calibre Rifles such as .375 H7H without a problem. The IP67 rating means that the Scope is waterproof and you can continue shooting in the worst of the weather.
The Panther is also the first Rifle Scope in the HIKMICRO range to be powered by the industry standard 18650 removable battery. This makes extended hunting trips possible without any power concerns. Replacement batteries are readily available and economical to buy. There is also a high specification charger included with your Panther, which provides the charging status and health of your batteries, ensuring you will never be caught in the field with a dead battery.
All thermal sensors used in HIKMICRO products are designed, developed and manufactured by HIKMICRO. This guarantees you unrivalled performance and value for money. You are also covered by the 3 year HIKMICRO UK warranty. Should you encounter a problem with your product, HIKMICRO have UK based technicians who can resolve any issue quickly.
More Information
Brand | HIKMICRO |
---|---|
Popularity | HIKMICRO Panther 50mm LRF Smart Thermal Weapon Scope |
SKU | HM-PH50L |
Unit Type | Thermal |
Colour Palettes | Yes |
Detection Range | 2500m |
Display Resolution | 1024x768 |
Display Type | OLED |
Magnification (Digital) | 8x |
Magnification (Optical) | 4.3x |
NETD | <35mK |
Objective Lens Diameter | 50mm |
Operating Temperature | -30/+55°C |
Pixel Pitch | 12μm |
Rangefinder | LRF |
Refresh Rate | 50HZ |
Sensor Resolution | 384x288 |
Video Recording | Yes |
WiFi |
Yes |
Specs
MAIN | |
Sensor | 384x288px @ 12µm |
Objective Lens (Focal length) | 50mm / F1.0 |
Detection Range (Human) | 2500m |
Magnification | 4.3x |
SENSOR | |
Type | Uncooled Focal Plane Arrays |
Resolution, pixels | 384x288px |
Pixel pitch, µm | 12µm |
Frame rate, Hz | 50 Hz |
NETD | <35mK |
OPTICS | |
Objective lens | F1.0 |
Focal Length | 350mm |
Magnification (Optical) | 4.33x |
Magnification (Digital) | 1x, 2x, 4x, 8x |
Field of view | |
LASER RANGEFINDER | |
LRF Fitted | YES |
Maximum range | 600m |
Measurement accuracy | ± 1m |
DISPLAY | |
Type | 9.9mm OLED |
Resolution, Pixels | 1024 × 768 px |
Eye Relief | 45mm |
Colour Palettes | Black Hot, White Hot, Red Hot, Fusion |
Picture-in-Picture | Yes |
RETICLE OPTIONS | |
Number of preloaded reticles | 5 Reticle choices |
Reticle Colours | White, Green, Red |
VIDEO | |
Video recording | Yes |
Picture snapshot | Yes |
Built-in memory, Gb | 16 Gb |
ADDITIONAL FEATURES | |
Hot Tracking | YES |
WiFI hot spot | YES |
T-Vision App support | YES |
ENVIRONMENTAL | |
Recoil resistance | 6750 J |
Degree of protection, IP code | IP67 |
Water protection | Protected against temporary submersion in water |
Operating temperature range | -30 °C to 55 °C |
WEIGHT & SIZE | |
Dimensions, mm | |
Weight, kg | |
POWER SUPPLY | |
Operating time on battery (WiFi & Hot tracking disabled) |
Up to 6 hours continuous running |
Charging interface | USB-C |
Battery type | Replaceable 18650 |
Features
- High-quality Thermal Image Performance
- Compact Laser Rangefinder
- 4 Colour Palettes (White Hot, Black Hot, Red Hot and Fusion)
- HIKMICRO’s 384x288, 12µm Thermal Sensor with a sub 35mk NETD rating
- 50mm Focal Length Lens System
- 4.3x Optical Mag
- 8x Digital Mag
- 2500m Detection Range
- 1024x768px OLED Display
- Picture-In-Picture
- One-Shot Zero System
- T-Vision App
- Picatinny Rail (included)
- Recoil rated to 750 g/ms
- IP67 Weather Rating
- 18650 Removable Battery
- 3 Year UK Warranty
In the box?
- HIKMICRO Panther 50mm LRF Thermal Weapon Scope
- Picatinny Rail
- High Spec Charger
- User Manual
