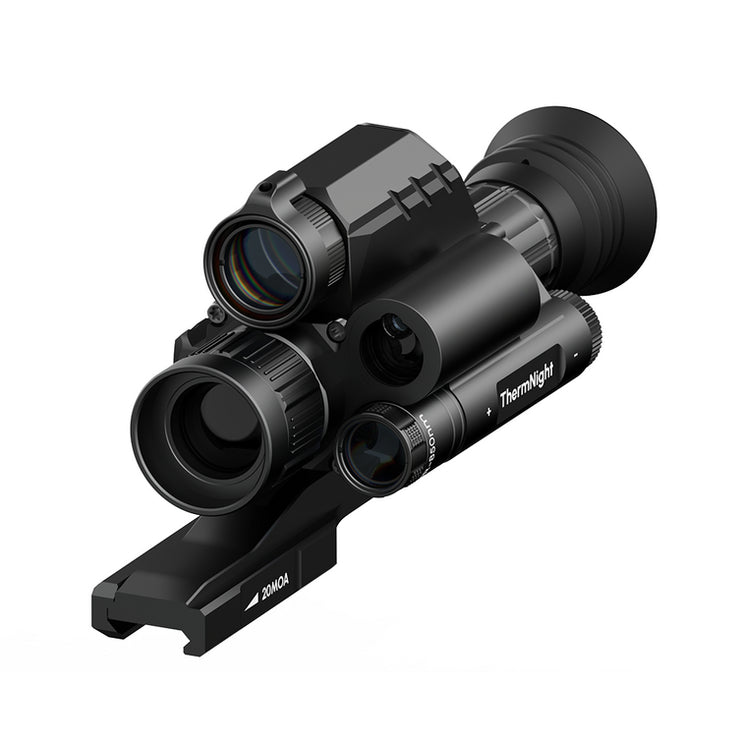

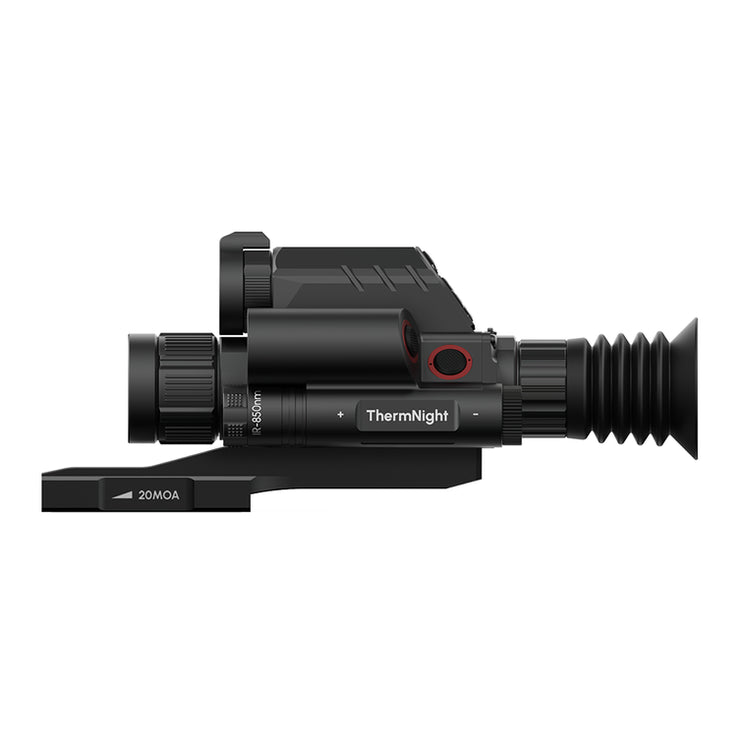

Discover a New Dimension of Vision with the DNT Thermnight TNC225R

Elevate your shooting experience with the DNT Thermnight TNC225R Thermal & Night Vision Multispectral Scope. This advanced optic is one of the first of its kind, offering an affordable multi-spectral solution for both thermal identification and clear night vision target acquisition. With its integrated laser rangefinder (LRF) and ballistic calculator, accessible through a dedicated companion app, the TNC225R is an essential tool for outdoor enthusiasts, hunters, and professionals alike.

Key Features

SEE IT ALL, ANYTIME, ANYWHERE!

• Multi-Spectral Channel Design: Combines thermal and night vision capabilities for comprehensive target identification in all conditions.
• 256x192 12-Micron Thermal Sensor: Offers high-resolution thermal imaging, capturing fine details in low-light environments.
• Sony Starvis 2 Optical Sensor: Delivers exceptional clarity in visible light and infrared, enhancing target detection at any time of day.

INTEGRATED LASER RANGEFINDER AND BALLISTIC CALCULATOR

• 1000M Laser Rangefinder: Accurately measure distances up to 1000 meters, critical for long-range shooting and precision targeting.
• Inbuilt VCSEL IR Illuminator (850NM): Provides the longest viewing range, ensuring visibility even in complete darkness.

EXCEPTIONAL IMAGE QUALITY AND VERSATILITY

• Digital Zoom: Offers multiple levels (3x, 6x, 9x, 12x) of magnification for both thermal and night vision modes.
• Micro-OLED Display: Features a 1920x1080 resolution, delivering crisp and clear visuals with a smooth 50FPS frame rate.

BUILT TO LAST IN ANY ENVIRONMENT

• Robust and Compact Design: Lightweight yet durable, perfect for rugged outdoor use.
• IP67 Waterproof Rating: Ensures reliable performance in harsh weather conditions.

Enhanced User Experience

• Eye Relief: Comfortable 45mm eye relief with adjustable diopter settings (+5D) for personalized focus.
• Extended Battery Life: Up to 5 hours of operation with a standard 18650 flat-top battery, with additional power options via 5V Type-C USB.

Complete with Essential Accessories

• Internal 32GB Storage: Plenty of space for storing videos and images captured during your excursions.
• WiFi/App Support: Seamlessly connect to the DNT app for enhanced control and functionality.

Technical Specifications

Thermal Sensor:

• Resolution: 256x192 pixels
• Pixel Size: 12x12um
• Base Magnification: 3x
• Image Sensor: Uncooled Infrared Image Sensor
• NETD: ≤25mk@25°C
• Digital Zoom: 3x, 6x, 9x, 12x
• Frame Rate: 50FPS
• Focal Length of Objective Lens: 25mm

Night Vision / Visible Light Sensor:

• Resolution: 1920x1080 pixels
• Base Magnification: 5x
• Image Sensor: Sony Starvis 2
• Digital Zoom: 5x, 7.5x, 10x, 12x, 15x, 17.5x, 20x
• Frame Rate: 60FPS
• Focal Length of Objective Lens: 52mm
• Infrared Power: <5W

Optics:

• Eye Relief: 45mm
• Diopter Adjustment: +5D
• Max LRF Range: 1000m

Display:

• Type: Micro-OLED
• Resolution: 1920x1080 pixels
• Frame Rate: 50FPS

Power:

• Battery Type: 18650 Flat-top
• Operating Time: Up to 5 hours (battery dependent)
• External Power: 5V Type-C USB

Physical:

• Weight: 635g
• Dimensions: 171x79x76mm
• IR Wavelength: 850nm
• Ingress Protection: IP67
• Storage: Internal 32GB
• WiFi/App: Supported by DNT
• Operating Temperature: -20 to 50°C

Includes:

• Standard DNT Picatinny Rail (Alternatives are available )
• Rear Eye Maximizer
• Charging/Data Cable

Note: 18650 (Flat Top) Batteries are NOT INCLUDED.
DNT recommends using reputable manufacturers for optimal performance.
