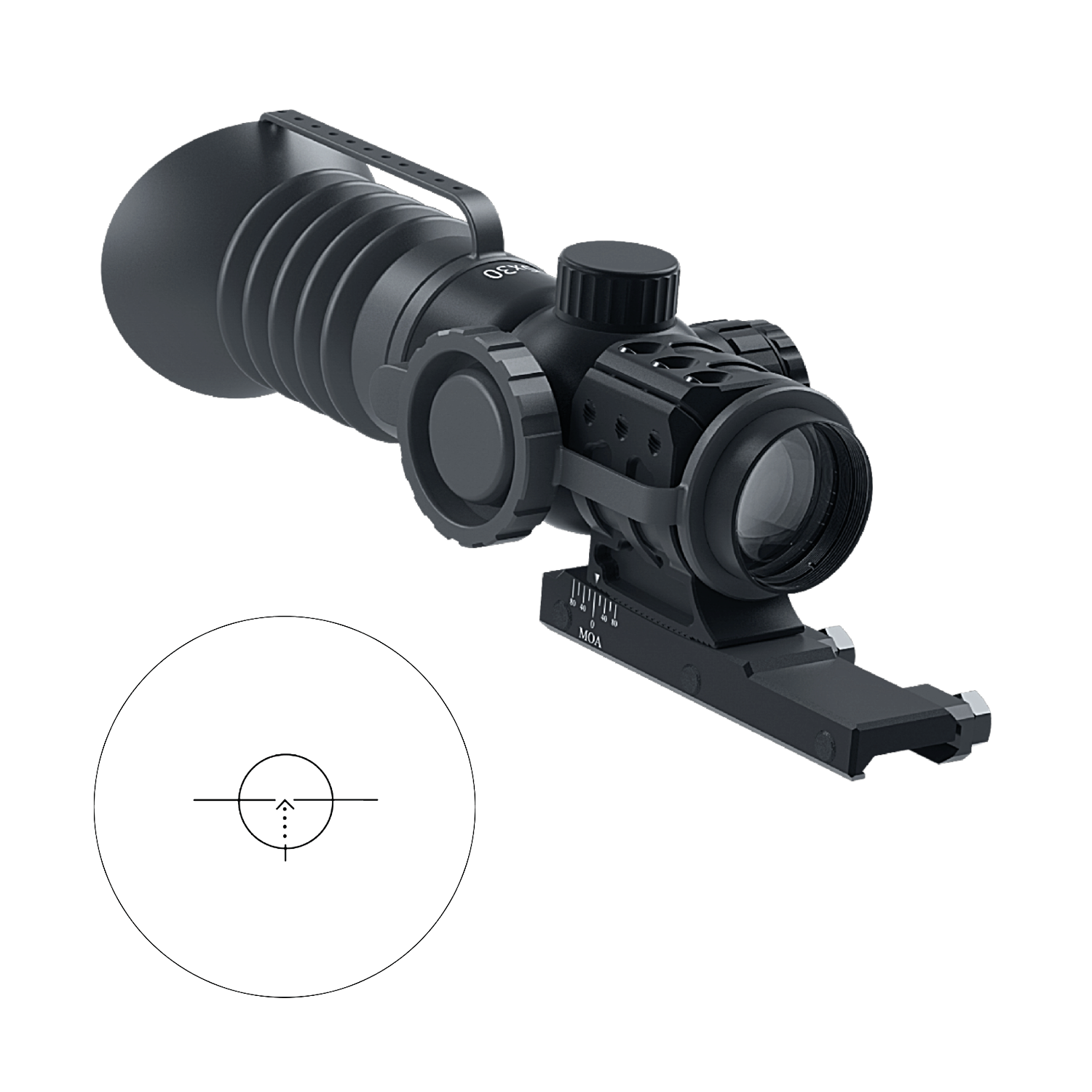

Immersive Optics -5x30 Prismatic Scope - MilDot Rapid w MOA Adjustable Mounts

Immersive Optics -5x30 Prismatic Scope - MilDot Rapid w MOA Adjustable Mounts

SKU:IMM-530MDR-M

Regular price £282.95 GBP
Regular price Sale price £282.95 GBP
Sale Sold out
Tax included.

Please be aware Air weapons & silencers are restricted and cannot be delivered to your address (unless delivered locally). These items will need to be collected or sent to your nearest gunshop for collection. Photo ID Required.

OPTICAL SIGHT 5X30

Lightweight and compact CQB style sight with medium (45mm) sight with medium eye relief to suit lots of various calibres. Field of view 2x wider than traditional scopes.

A compact sight with the sharpest image and improved light transmission. Bright picture for using from dawn to dusk.

Supplied with MOA adjustable set of mounts.

Prismatic design allows us to make much more compact and lightweight scopes with superior optical performance. Being compact allows for much better Gun/Scope weight distribution, the weight being further back massively reduces fatigue, which allows the shooter to stay out longer and shoot more accurately.

Main Tech:

  • up to 2X wider field of view when compared to traditional sights
  • only 130mm  long
  • focusing down to 6 meters
  • ED (Low dispersion) Glass and CNC machined precision mechanics

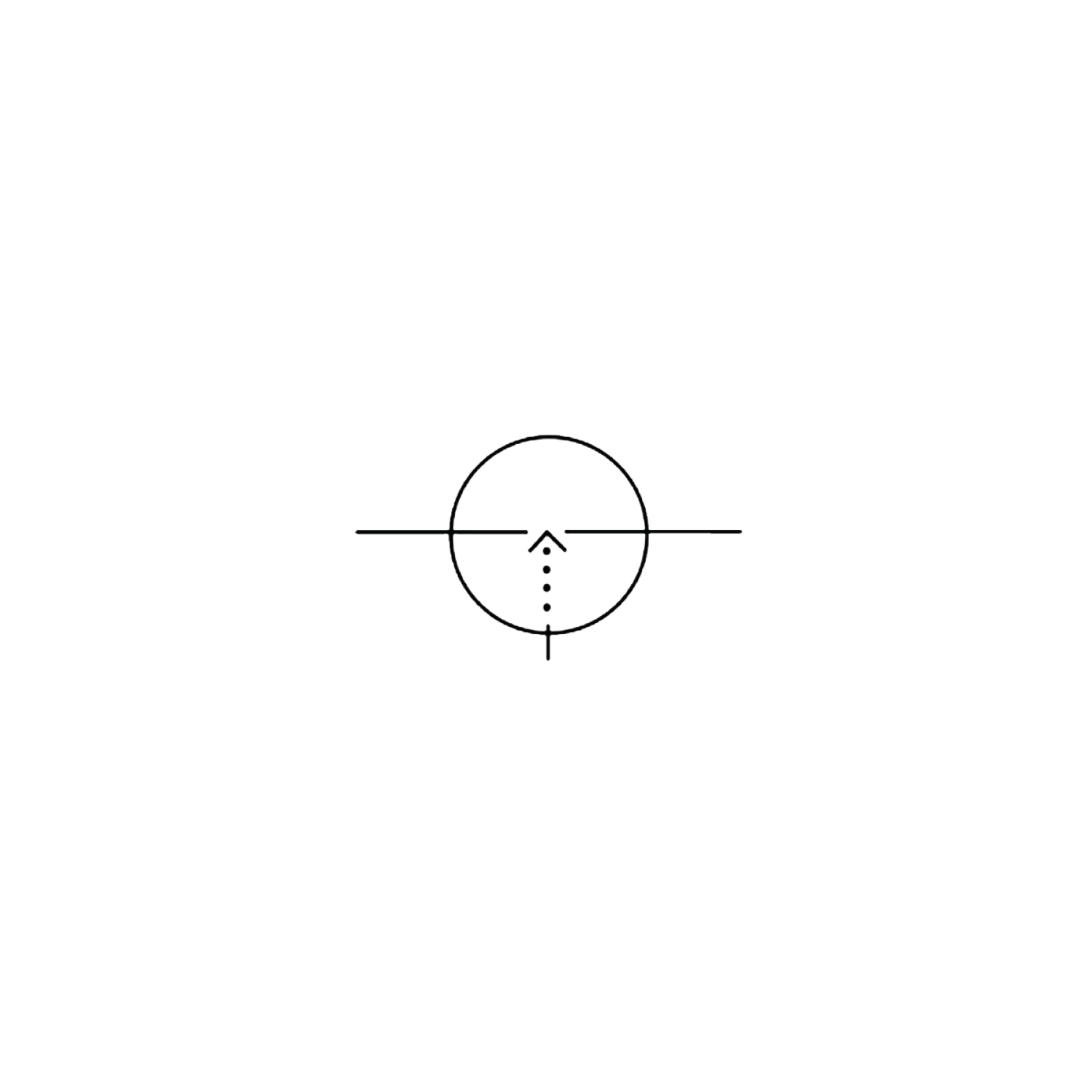

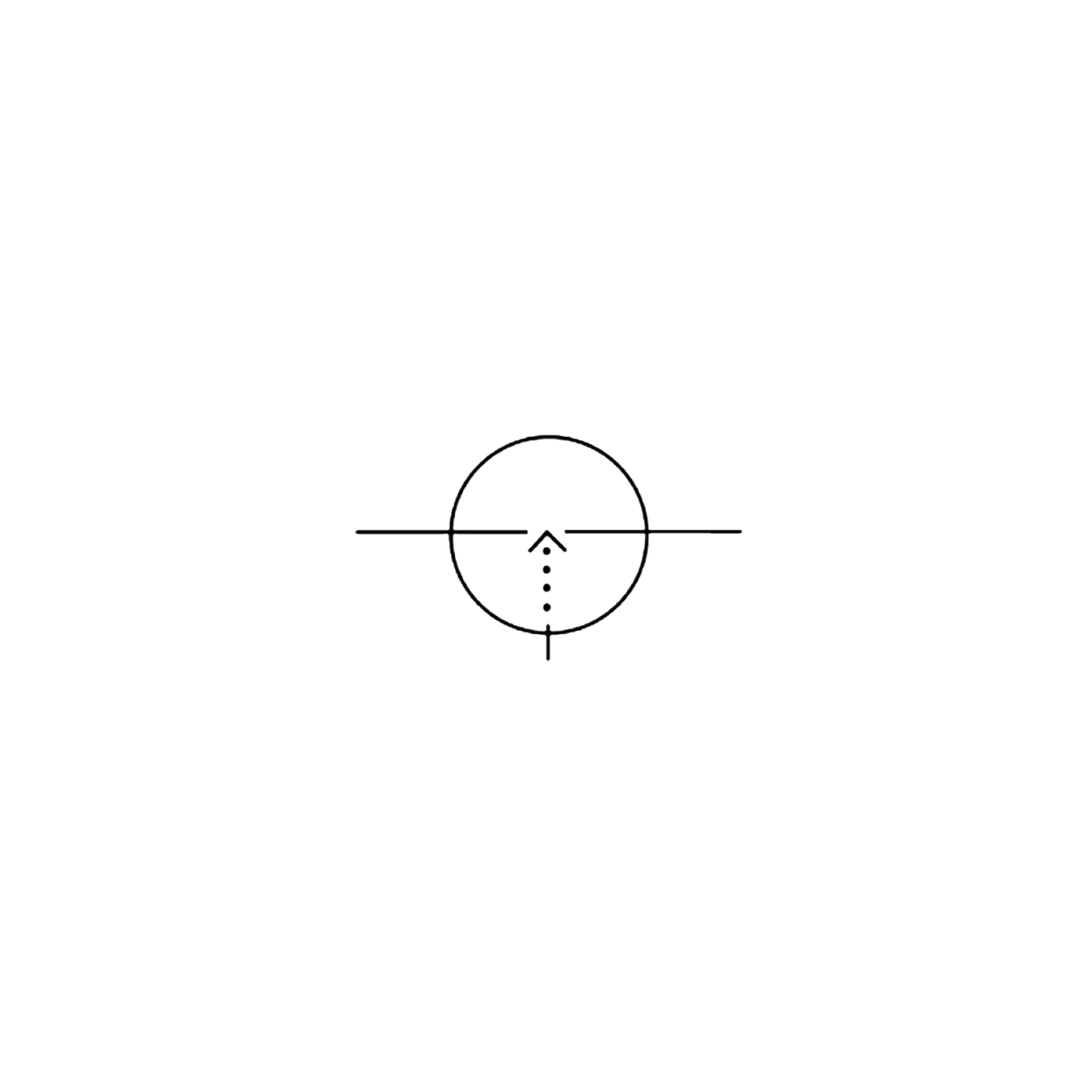

  • 0.1 mill turrets to match mildot  reticules

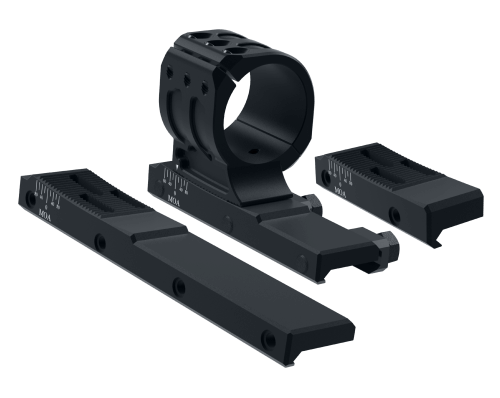

Smart MOA adjustable, CNC machined mounts will help to zero the scope and stay in the middle of its adjustment range. Selection of rails to help place the scope in a comfortable position for the users head on any type of gun, from bullpup to a full-length sporter.

PARAMETER SIGHT 5X30
Magnification, X 5
Objective Lens Diameter, mm 30
Eye Relief, inches / mm 1.77 / 45
Tube size, mm 34
Field of View, ft@100yds/ m@100m 37 / 12
Minimum Focusing, m 6
C lick Value (MIL /MOA/cm@100m) 0.1 / 0.338 / 1
C licks per Revolution 50
Travel Per Rotation (MIL / MOA) 5 / 15
Max Elevation Adjustment (MIL / MOA) 28 / 83
Max Windage Adjustment (MIL / MOA) 28 / 83
Sight dimensions, mm 72 x 53 x 130
Sight dimensions, in 2,8 x 2,1 x 5,1
Weight (without mounts) oz / gr 11.8 / 336
Weight (with MOA adj. mounts) oz / gr 15.8 / 450
Waterproof and Nitrogen filled YES
Shock Proof (up to 600G) YES
